60W 12V/24V CV High-end Dimmable Waterproof LED power supply

● Brand Name:YSD
● Input voltage:100-277Vac
● Output voltage:12V,24V
● Output current:5a/2.5a
● Output power range:0~60W
● Output Frequency:50-60Hz
● Power factor:PF>0.95/230Vac,at full load
● Efficiency:91%
● Dimming interface:triac/0-10V/1-10V/10V PWM/resistance DIM
● Dimming range:0~100%,dimming depth:Max.1%
● Certificates:CE,BIS,UL,ROHS
● Material:Aluminum
● Waterproof grade:IP67
● Production Place:Shenzhen,CN
● Warranty period:5 years
● Downloaddownload-pdf-icon
Description

China manufacturer ac to dc 24v 60w  2.5a ip67 UL dimmable led switching power supply LED driver






Quick Details

Lighting solutions service: Lighting and circuitry design,Project Installation
Range of application: LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number: YSD-60WUGF-12TL/YSD-60WUGF-24TL
Product Name: Led Driver(Switching Power Supply)
Size: 186*60*20.5mm
Weight: 400g
Color: Coffee
Supply Ability: 5000 Case Cases per Day
Fast delivery: sample within 1-2 days,wholesales 3-7 days,OEM 7-10 days
Shipping: DHL·UPS·TNT·EMS·International Airmail

Support Express:

Sea freight·Land freight·Air freight
Payment:

PayPal·HSBC·Western Union

*YSD 5 in 1 Dimmable series products can match with manydimmers, high compatibility and continuous smooth & flicker-free with dimmers(Leading edge(Triac),Trailing edge(ELV)phase-cut.)

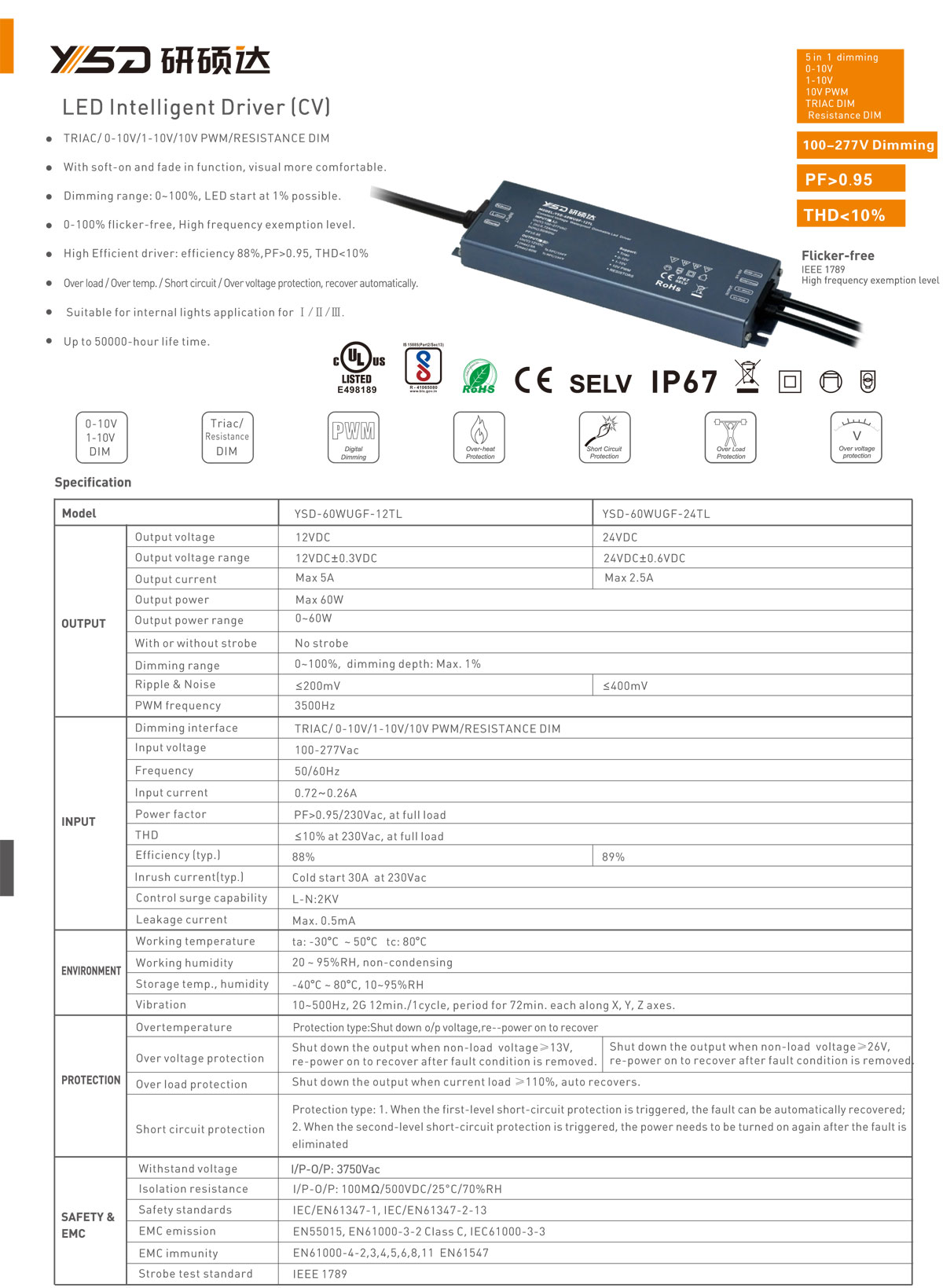

China manufacturer ac to dc 24v 60w  2.5a ip67 UL dimmable led switching power supply LED driver specification 01China manufacturer ac to dc 24v 60w  2.5a ip67 UL dimmable led switching power supply LED driver specification 02
