60W 12V/24V CV high-end dimmable switch LED power supply

● PF test under AC 220V and full loading
● Brand Name:YSD
● Input voltage:100-277Vac
● Output voltage:12V,24V
● Output current:5a/2.5a
● Output power range:60w
● Output Frequency:50-60Hz
● Power factor:PF>0.95/230Vac,at full load
● Efficiency:93%
● Dimming interface:triac/0-10V/1-10V/10V PWM/resistance DIM
● Dimming range:0~100%,dimming depth:Max.1%
● Certificates:CE,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP40
● Production Place:Shenzhen,CN
● Warranty period:5 years
● Downloaddownload-pdf-icon
Description

YSD 60w Triac dimming Switch Power Supply ip40 24V 2.5A LED Driver for indoor light






Quick Details

Lighting solutions service: Lighting and circuitry design,Project Installation
Range of application: LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number: YSD-60WUGP-12TL/YSD-60WUGP-24TL
Product Name: Led Driver(Switching Power Supply)
Size: 178*57*22.8mm
Weight: 305g
Color: White
Supply Ability: 5000 Case Cases per Day
Fast delivery: sample within 1-2 days,wholesales 3-7 days,OEM 7-10 days
Shipping: DHL·UPS·TNT·EMS·International Airmail

Support Express:

Sea freight·Land freight·Air freight
Payment:

PayPal·HSBC·Western Union

*YSD 5 in 1 Dimmable series products can match with manydimmers, high compatibility and continuous smooth & flicker-free with dimmers(Leading edge(Triac),Trailing edge(ELV)phase-cut)

YSD 60w Triac dimming Switch Power Supply ip40 24V 2.5A LED Driver for indoor light

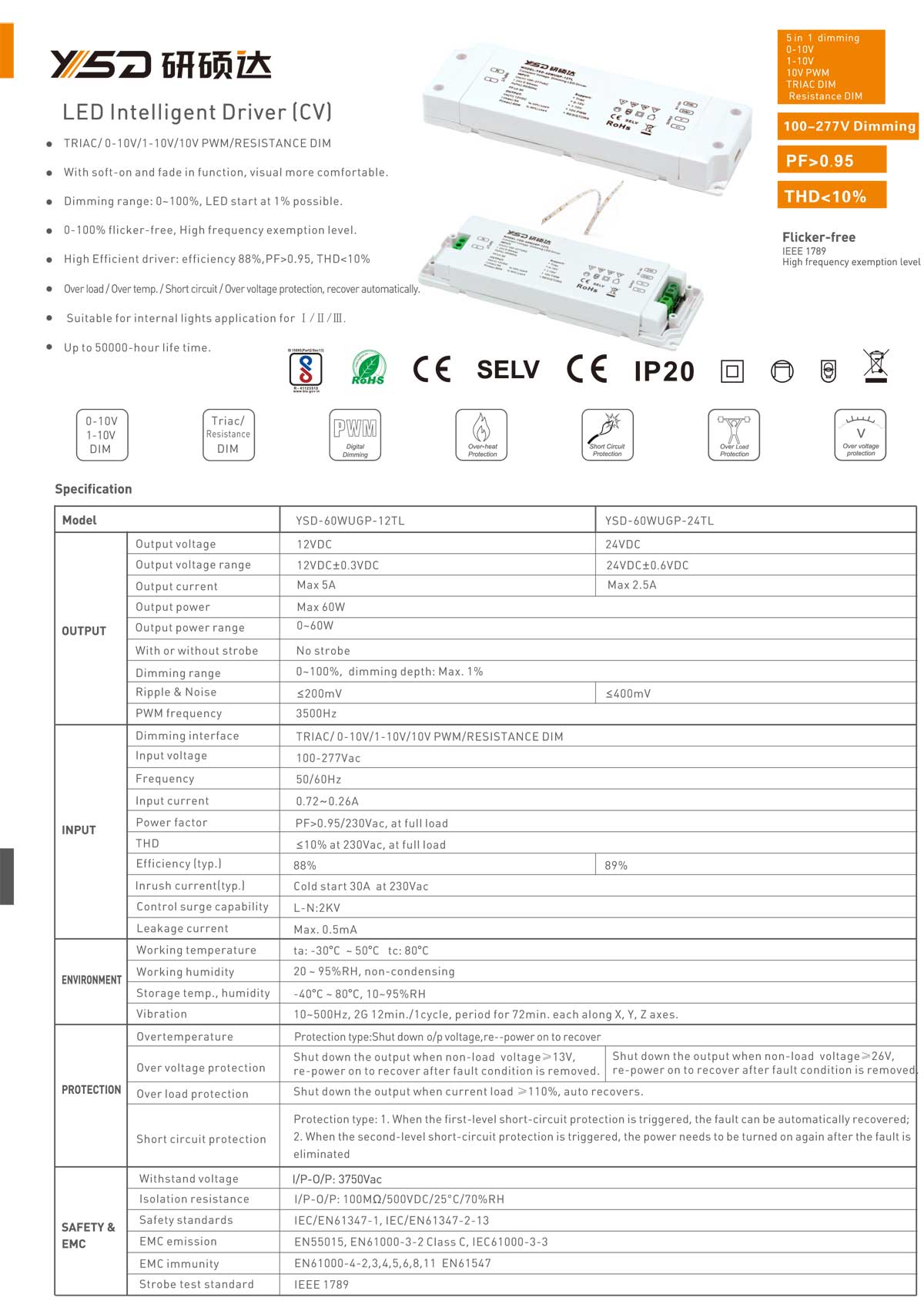

 specification 01YSD 60w Triac dimming Switch Power Supply ip40 24V 2.5A LED Driver for indoor light

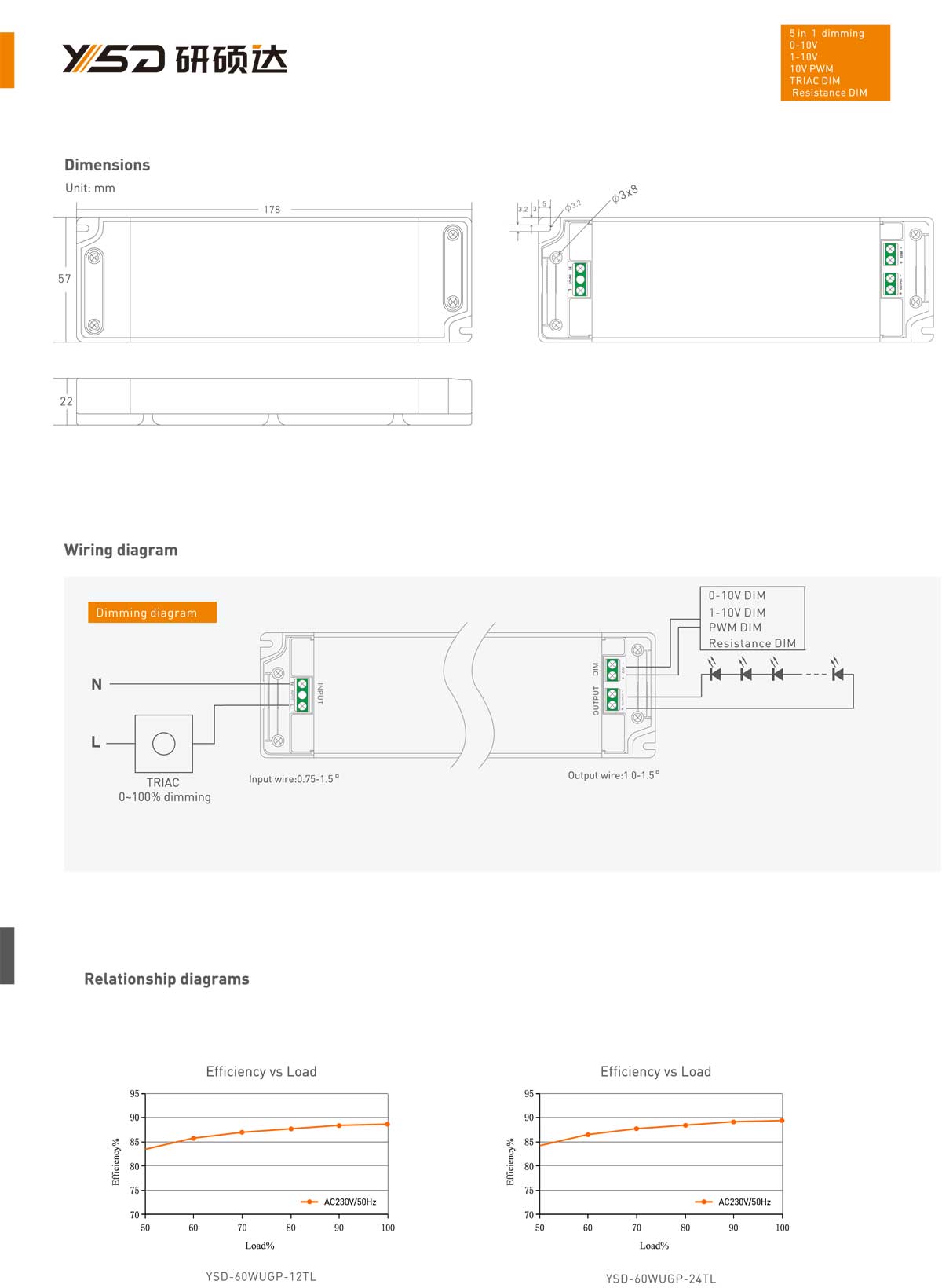

 specification 02
