200W 12V/24V CV semi filled glue switch LED power supply YSD

● PF test under AC 220V and full loading
● Brand Name:YSD
● Input voltage:100-264V
● Output voltage:12V,24V
● Output current:16.7a/8.3a
● Output power range:60w 100w 200w
● Output Frequency:50-60Hz
● Power factor:PF>0.96/230Vac,at full load.PF>0.98/115Vac,at full load
● Efficiency:93%
● THD<10%
● Certificates:CE,CB,TUV,SAA,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP40
● Warranty period:5 years
● Production Place:Shenzhen,CN
● Downloaddownload-pdf-icon
Description

YSD Newest emc IP20 led driver no fan pf0.9 Switch power 12v 24v 200w led power supply






Quick Details

Lighting solutions service: Lighting and circuitry design,Project Installation
Range of application:
LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number: YSD-200WUE-12/YSD-200WUE-24
Product Name: Led Driver(Switching Power Supply)
Size: 194*55*26mm
Weight: 450g
Color: Coffee
Supply Ability: 5000 Case Cases per Day
Fast delivery: sample within 1-2 days,wholesales 3-7 days,OEM 7-10 days
Shipping: DHL·UPS·TNT·EMS·International Airmail

Support Express:

Sea freight·Land freight·Air freight
Payment:

PayPal·HSBC·Western Union

*Note:E series products adopt fanless design ensures complete noisessness,Can provide output voltage 12v 24v 36v 48v or other output voltage can be customized

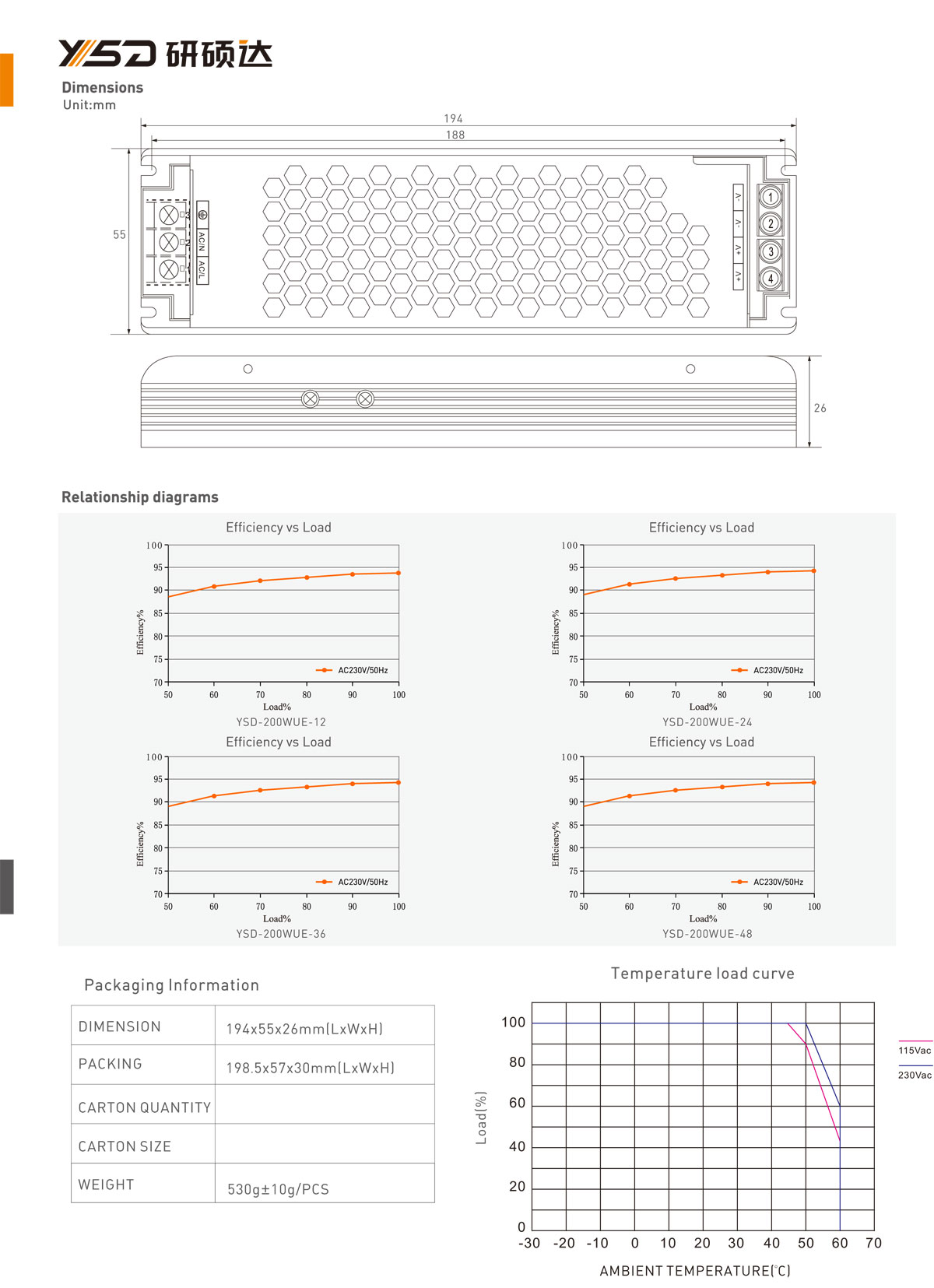

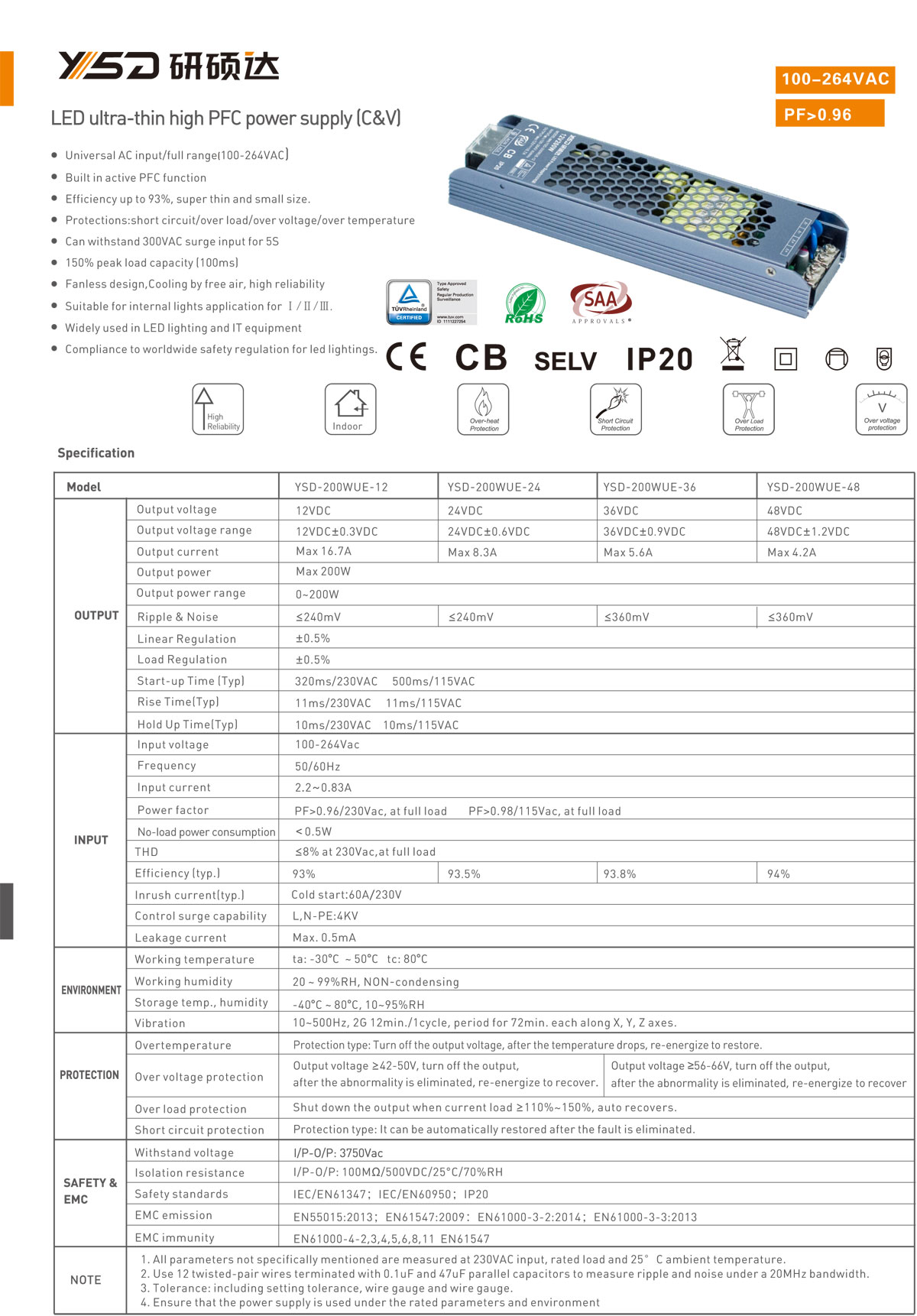

YSD Newest emc IP20 led driver no fan pf0.9 Switch power 12v 24v 200w led power supply specification 01YSD Newest emc IP20 led driver no fan pf0.9 Switch power 12v 24v 200w led power supply specification 02
