ShenZhen,China YanshuodaTechnology Co., Ltd

Your Position:Home>Products>CP switch LED power supply>100W 12V/24V CV dimmable Switch LED power supply

100W 12V/24V CV dimmable Switch LED power supply

● PF test under AC 220V and full loading
● Brand Name:YSD
● Input voltage:175-264Vac or 100-130Vac
● Output voltage:12V,24V
● Output current:8.5a/4.2a
● Output power range:60w 100w
● Output Frequency:50-60Hz
● Power factor:PF>0.55/230Vac,at full load
● Efficiency:86%
● Dimming interface:triac/0-10V/1-10V/10V PWM/
● Dimming range:0~100%,dimming depth:Max.1%
● Certificates:CE,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP20
● Production Place:Shenzhen,CN
● Warranty period:3 years
Description

0-10V+Triac Dimmable IP20 12V/24V 100W Switching power supply SMPS with CE, RoHS, BIS are hot selling




Quick Details

Lighting solutions service:
Lighting and circuitry design,Project Installation
Range of application:
LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number:
YSD-100WUCP-12TL/YSD-100WUCP-24TL
Product Name:
Led Driver(Switching Power Supply)
Size:
160*48*29mm
Weight:
210g
Color:
Coffee
Supply Ability:
5000 Case Cases per Day
Fast delivery:
sample within 1-2 days,wholesales 3-7 days,OEM 7-10 days
Shipping:
DHL·UPS·TNT·EMS·International Airmail

Support Express:

Sea freight·Land freight·Air freight
Payment:

PayPal·HSBC·Western Union

*Soft and smooth,flicker-free,jitter free;a variety of dimming,simultaneous control,no interference

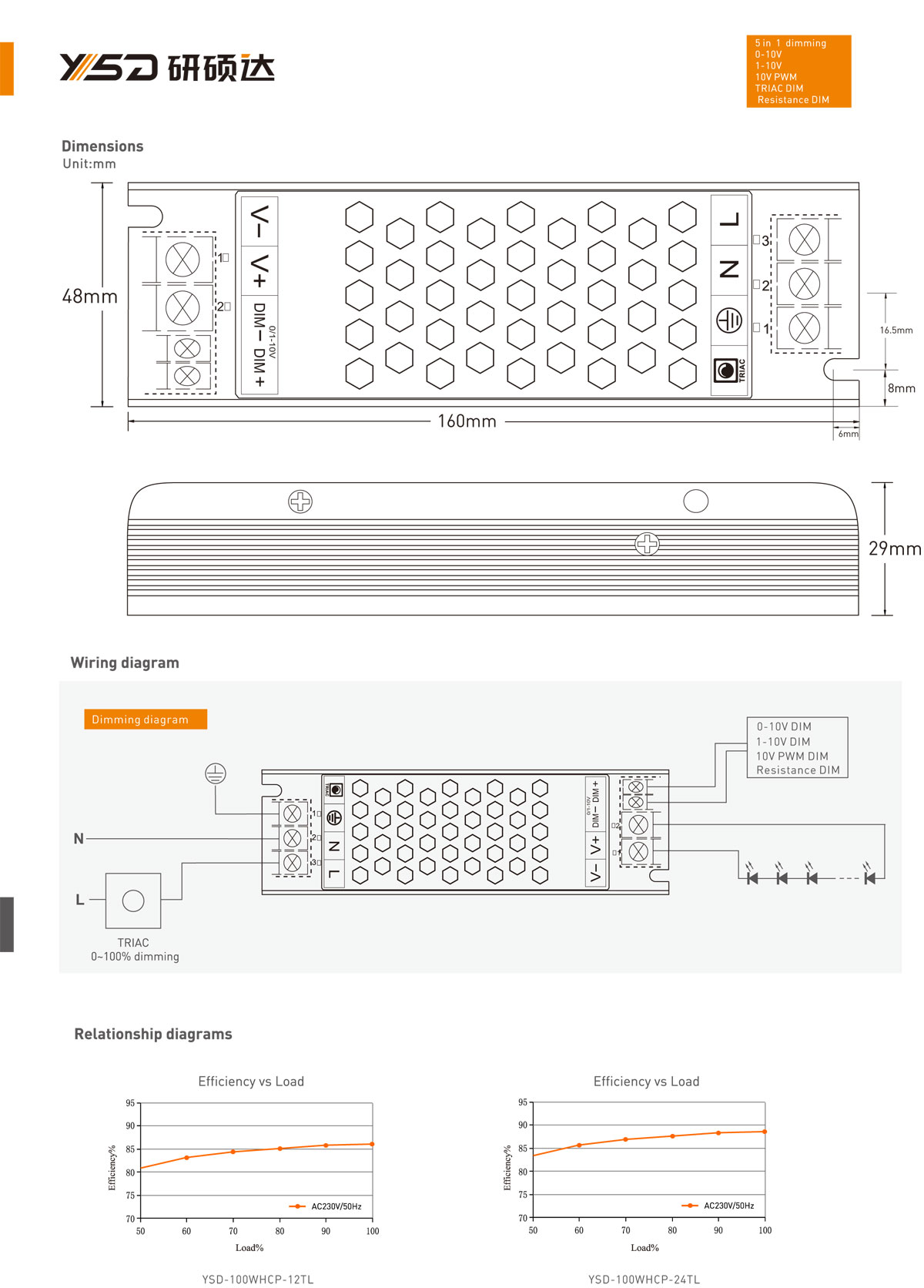

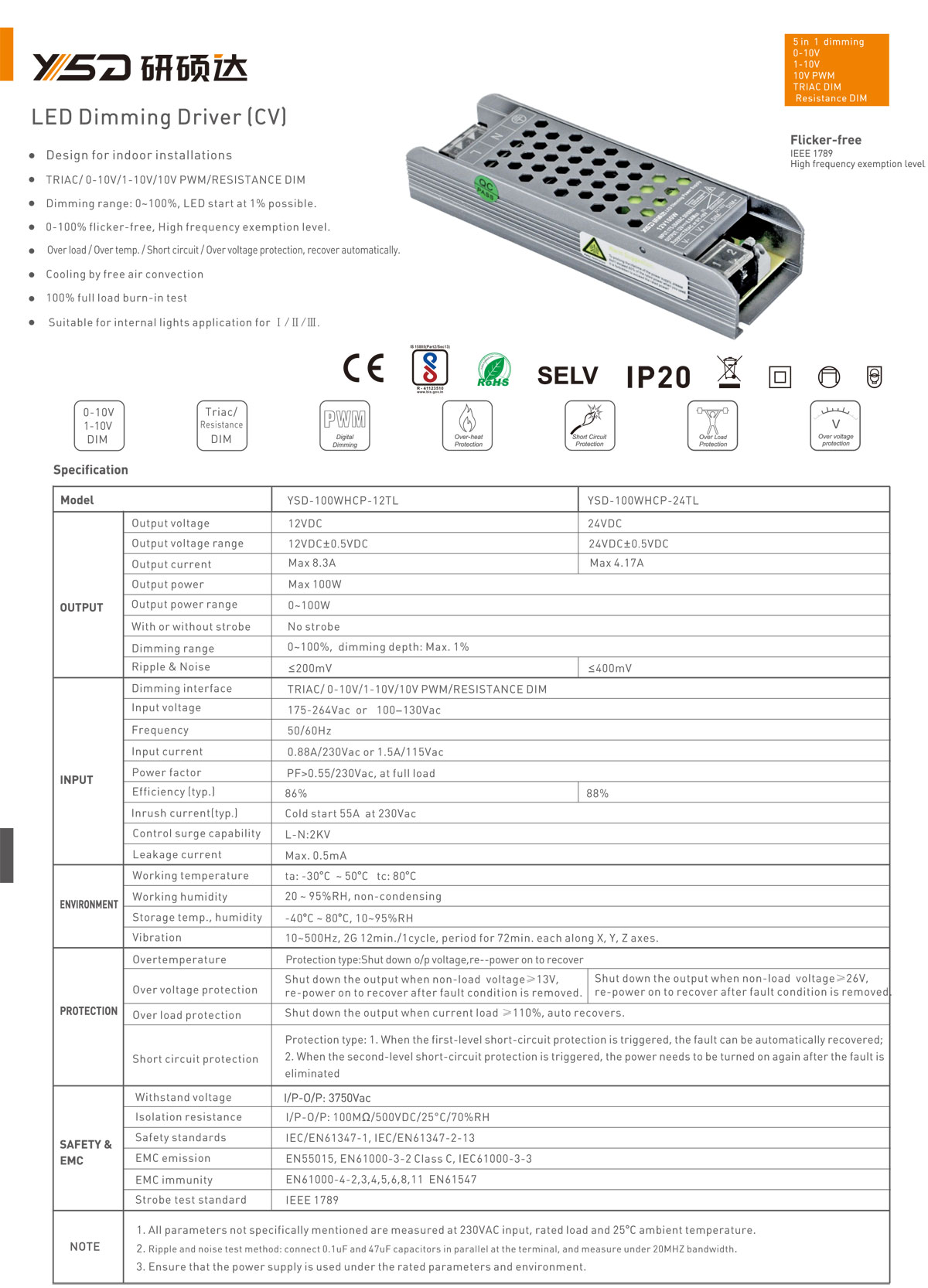

0-10V+Triac Dimmable IP20 12V/24V 100W Switching power supply SMPS with CE, RoHS, BIS are hot selling  specification  010-10V+Triac Dimmable IP20 12V/24V 100W Switching power supply SMPS with CE, RoHS, BIS are hot selling  specification  02
